Smell-measurement at dirt collecting room of A hospital

Measurement condition

  - Keeping dirty clothes, dirty paper diaper.
  - Changing diaper at 10:00 and at 15:20.
  - Lamp : 3 units of sterilized lamps.

Test Place	Dirty Area	Unit
Area for installation	6.023	m²
Bad smell condition	Strong bad-smelling
Sampler	3s
Room capacity	14.46	M3
Catalyst area	1.44	m²
Capacity coefficient	10.04	M3/m²
Capacity content coefficient	277.2	m³/h
Rotation coefficient	19	loop/h
Measuring instrument	67	Σ/h.m²
Finder	KARUMOASHIGUMA

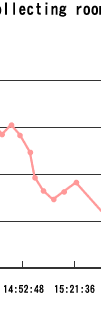

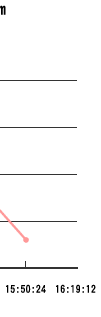

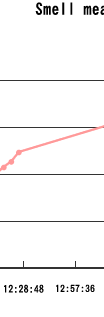

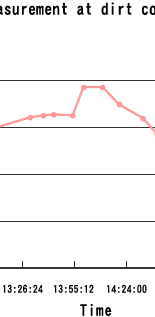

Time	Sigma	Situation	Time	Sigma	situation
12:00	583	Stop ventilation fan.	14:20	675	Smell confirmed.
12:07	595		14:30	658	Smell reduction.
12:10	599	JG unit on.	14:40	643	Dirt in smell change.
12:20	610		14:45	652	Full dirt linen bag.
12:22	615		14:50	642
12:25	624		14:55	625
13:32	666	JG unit off.	15:00	598	Figure up, dirt box half open.
13:34	667	Luminous on, diaper changing start.	15:05	583
13:40	669		15:10	574	Smell slightly remain.
13:50	669	Reducing smell.	15:15	580
14:00	693	Pungent smell falls.	15:20	590	Dirt in.
14:10	691	door to next room open, smell in.	15:50	530	Small Confirm.

Test result

-JG deodorization unit could not decrease smalls.
-Our sample unit installed but sigma increased because of addiction of dirty diaper.
-Smells moved due to opening.
-Confirmed reduction of smell with closeing door.
-Additional bug of dirty linen but reduction of smell.

Test data of troughput of cataligation

	0	5	10	15	20
Filter1 1st	100.0	86.1	43.0	20.0	14.3
Filter2 1st	100.0	94.3	31.4	23.8	15.7
Honeycam Filter1 1st	100.0	94.3	43.0	78.6	70.0
Honeycam Filter2 1st	100.0	94.3	78.6	78.1	78.6
End Test Filter1 2nd	100.0	71.7	43.0	14.3	14.3
End Test Filter2 2nd	100.0	94.3	47.1	23.8	15.7
End Test Honeycam1 2nd	100.0	94.3	94.3	78.6	78.6
End Test Honeycam2 2nd	100.0	94.3	78.6	78.6	78.6
